GOLDMUND
MIMESIS SIGNATURE

CA$33,000.00

Description ▴

Elevating the auditory experience to new heights, we proudly unveil the Mimesis Signature, a convergence of analogue finesse and digital prowess. This symphony of audio excellence introduces a paradigm shift in preamplification technology. At its core, the Mimesis Signature features the ESS9028Q2M SABRE32 Reference DAC, a 32-bit stereo digital-to-analogue converter that reshapes sonic fidelity. With unparalleled capabilities, it seamlessly handles PCM audio data up to 384kHz at 32-bit and DSD data up to the remarkable DSD-22.6MHz format (DSD512). This DAC sets new benchmarks with a dynamic range (DNR) of 129dB and remarkably low THD+N of -120dB, capturing every nuance with precision.

Product Specifications ▾



POWER SUPPLY Nominal line voltage: 117 or 234 V (switchable)
Fuse 2.5A for 110V
Fuse 1A for 220V
Input voltage range: +/- 10 %

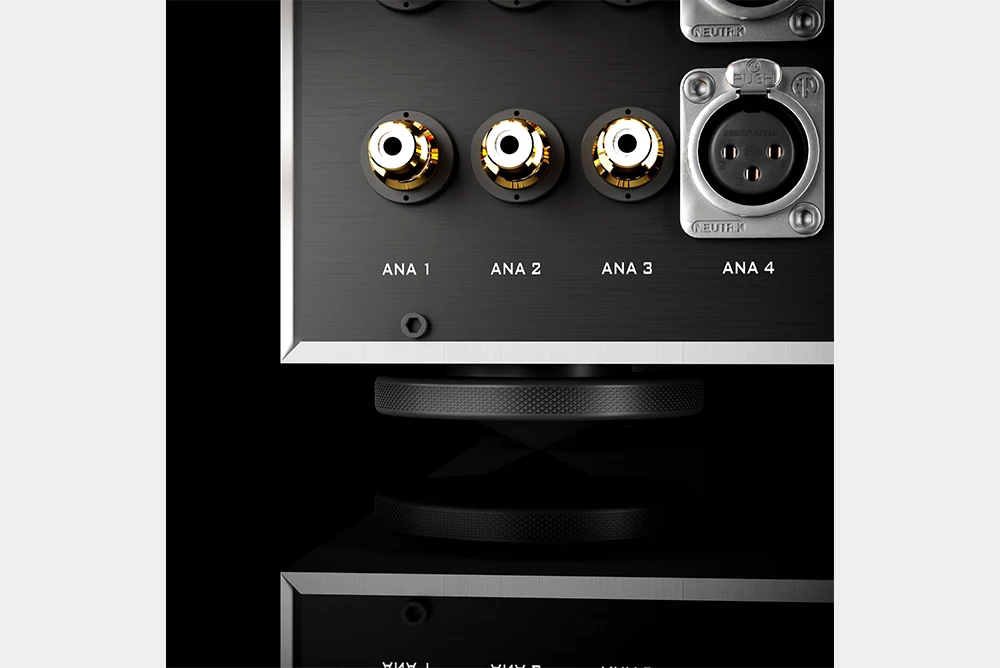

ANALOGUE INPUTS 3 x pair RCA
1 x pair XLR balanced
DIGITAL INPUTS 2 x Digital S/PDIF
1 x Toslink Optical
1 x USB AUDIO (up to 384 kHz PCM up to
DSD512)
REAR PANEL CONNECTORS & CONTROLS ON/OFF power switch key
Voltage input selector
RS232 Command connector
INPUT Input impedance: 50 kOhms
Nominal input level: 2.25 V RMS
Maximum input level (unbalanced): 4V RMS
Maximum input level (balanced): 2V RMS
OUTPUT 1 x pair of RCA
1 x pair XLR balanced
FREQUENCY RESPONSE These values for any level to maximum output level
+/- 0.1 dB, 10 Hz – 20 kHz
+/- 1.5 dB, 10 Hz – 100 kHz
+/- 3 dB, 10 Hz – 200 kHz
DISTORTION With 1 V RMS output level, 80 KHz measurement
bandwidth, 600 Ohms termination impedance
THD unbalanced in to unbalanced out < 0.005%
(-90 dB) flat with frequency
IMD unbalanced in to unbalanced out < 0.002%
(-80 dB)
NOISE Signal-to noise ratio: > 120 dB at 0 dBFS
OPERATING TEMPERATURE Room temperature: -30 to +40 degrees Celsius
(-22 to +104 degrees Fahrenheit)
Internal temperature: +45 to +65 degrees Celsius
(+113 to +149 degrees Fahrenheit)
SIZE & WEIGHT 44 W x 40 D x 13.2 H (cm) – 17.32 W x 15.75 D
x 5.20 H (inch)
15 kg
COLOURS Silver Grey
