Technology:

Gen 3 and Gen 1 Inverted Triode technology
(can use new Gen 3 technology or previous Gen 1 technology)

Number Gain Stages:

Two

Tubes used:

1 x E280F(driver), 1 X Gen 3 IT (or Gen 1), per channel

Volume:

Transformer volume control 26 steps

Channel Balance:

Balanced left/right function

HT:

HT bypass ready

AC Link:

Aries Cerat HT Link ready

Input impedance:

7kΩ <100Hz

Output impedance:

12ohm

Signal bandwidth:

5Hz ~ 300Khz

Maximum voltage output:

2Vrms (low gain), 4V rms(medium gain)

Maximum gain:

3db (low gain version), 9db (medium gain version)

Noise floor:

<-120db unweighted

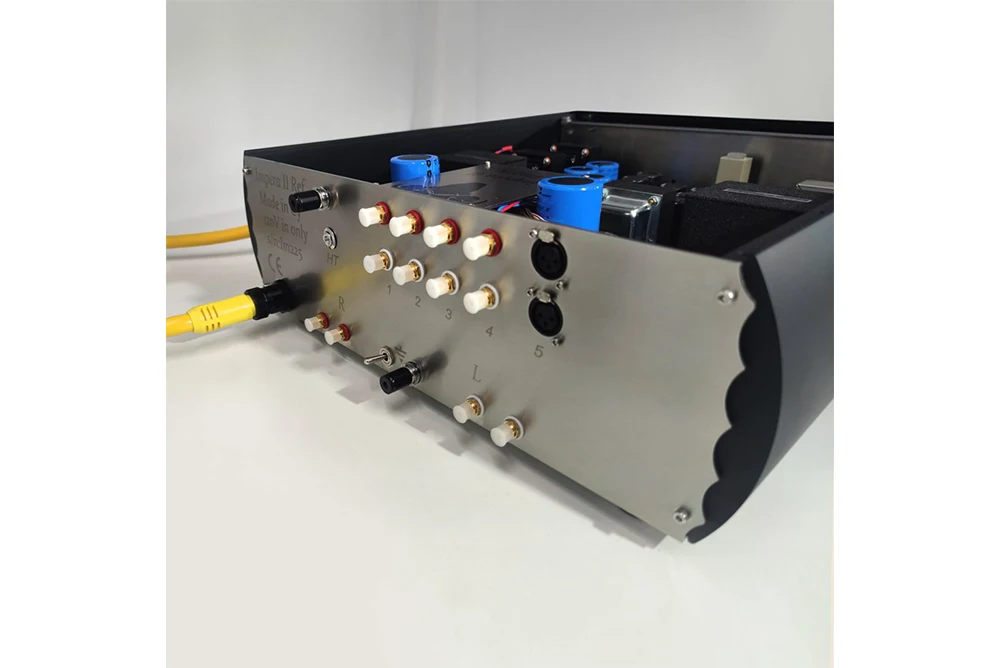

Inputs:

4 x RCA, 1 x true balanced XLR

Dimensions:

550mm W x 430mm D x 165cm H

Weight:

70kg (per chassis) 140kg total
