GOLDMUND

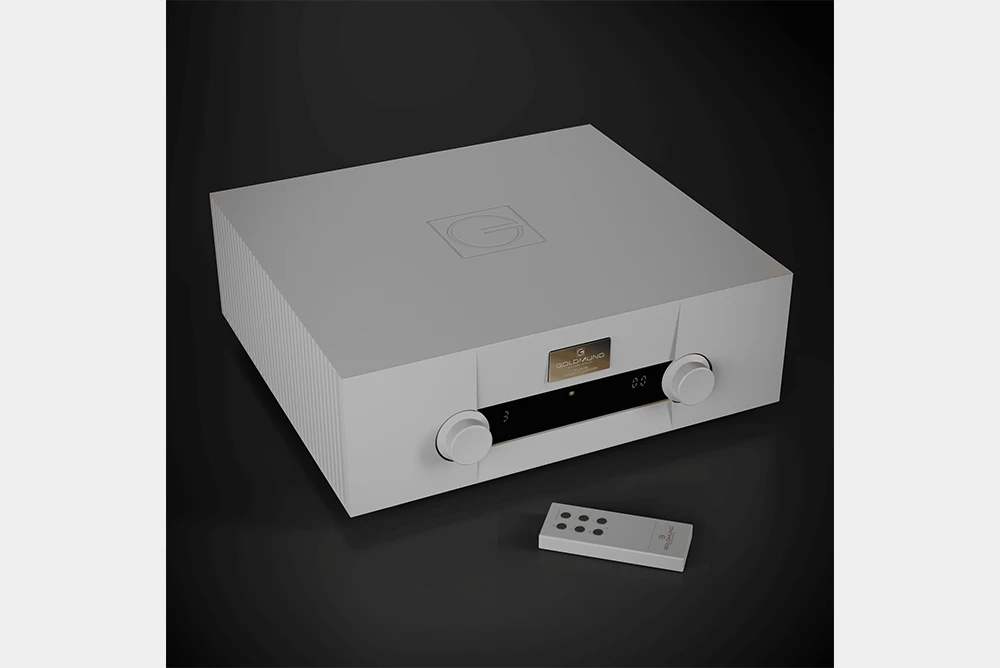

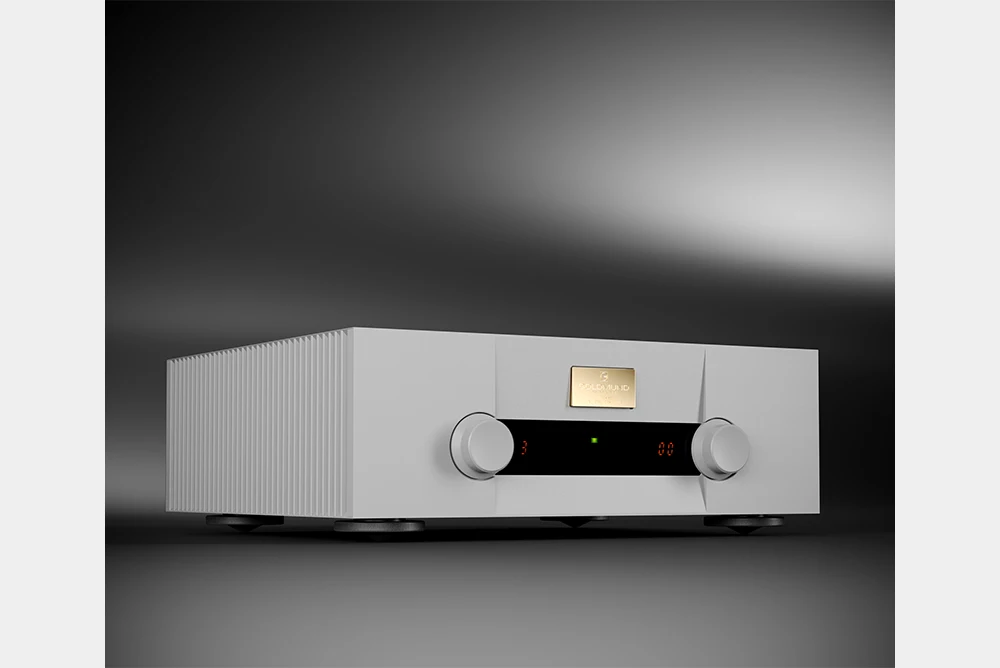

TELOS 690 Integrated

CA$50,000.00

Description ▴

Designed to cater not only to the discerning audiophiles but also to modern consumers seeking seamless digital integration, the Telos 690 sets a new standard in the realm of high-end audio experiences. At the forefront of its design, the Telos 690 addresses the evolving needs of today’s consumers. With an array of digital connectivity options, including USB Audio Class 2.0 interface supporting sample rates up to 384 kHz and a bit depth of 32, as well as Toslink Optical and Digital S/PDIF coaxial inputs, this amplifier effortlessly bridges the gap between traditional high-fidelity audio and modern digital sources.

Product Specifications ▾



POWER SUPPLY Nominal line voltage: 110 V or 220 V
Input voltage range: +/- 10 %
2x 350 VA Toroidal Power Transformer
Capacitor bank: 46’000 μF
RATED POWER CONSUMPTION IEC 62368-1, 1/8 Output Power at 8 Ω: 275 W

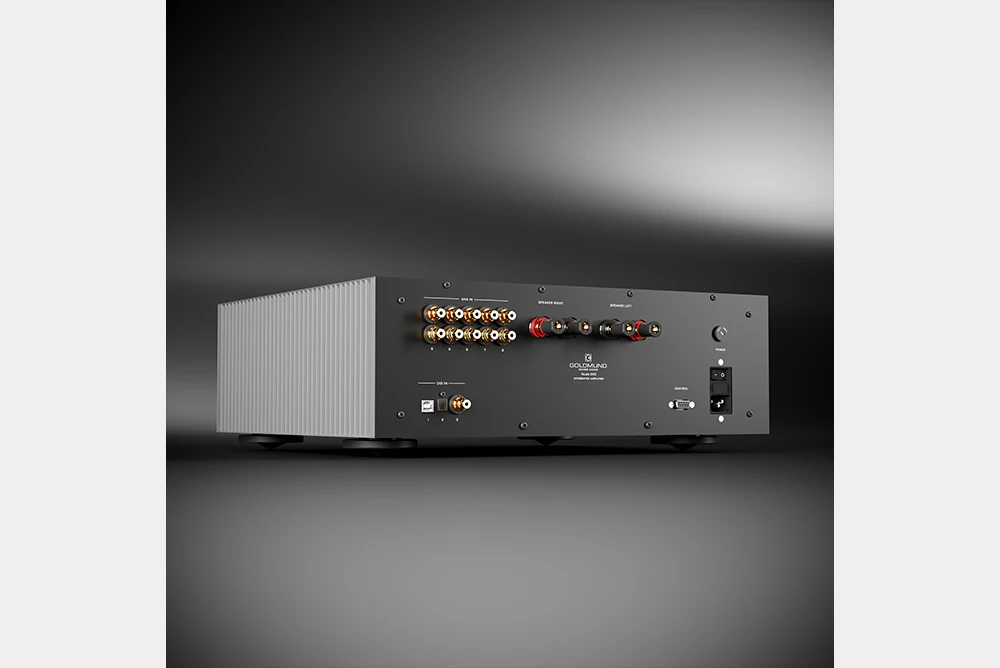

REAR PANEL 2 x output binding posts (left & right)
1 x On/Off power switch key
1 x Voltage input selector
RS232 Command connector
1 x USB device: Audio Class 2.0 (no driver re-
quired on Mac OS X as of v.10.6.4 nor on Linux,
driver required only for Windows, contact your
Goldmund representative):
· Sample rate up to 384 kHz/Bit depth up to 32
· DSD64, DSD128 over PCM capabilities
1 x Toslink Optical
1 x Digital S/PDIF coaxial RCA 75 Ohms
5 x Analog RCA (left & right)
INPUT Max level before clipping, Analogue input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT Max level before clipping, 1 % THD, unloaded:
170 Vpp
RATED POWER CONSUMPTION Maximum power (IEC 62368-1):
· 2 x 250 Wrms on 8 Ω / 1 % THD
· 2 x 320 Wrms on 4 Ω / 1 % THD
DISTORTION IMD (SMPTE), unloaded: < 0.02 %
THD+N, unloaded: < 0.08 % from 20 Hz to 20
kHz at 30 Vrms output
OUTPUT NOISE FLOOR Analog input terminated with RCA Shorting Caps,
unloaded: < 10 μV from 20 Hz to 20 kHz
GAIN 35 dB
DYNAMIC RANGE 22 kHz measurement bandwidth (flat), true RMS
unloaded: 100 dB
DAMPING FACTOR 600 at 1 kHz / 8 Ω
AMPLIFIER SIZE & WEIGHT 44 W x 16.5 H x 44.5 D (cm)
28 kg
PACKAGING SIZE & WEIGHT (NET) 51 W x 26 H x 56 D (cm)
26 kg
COLOR Standard : Silver Gray
Custom : Black Matte
