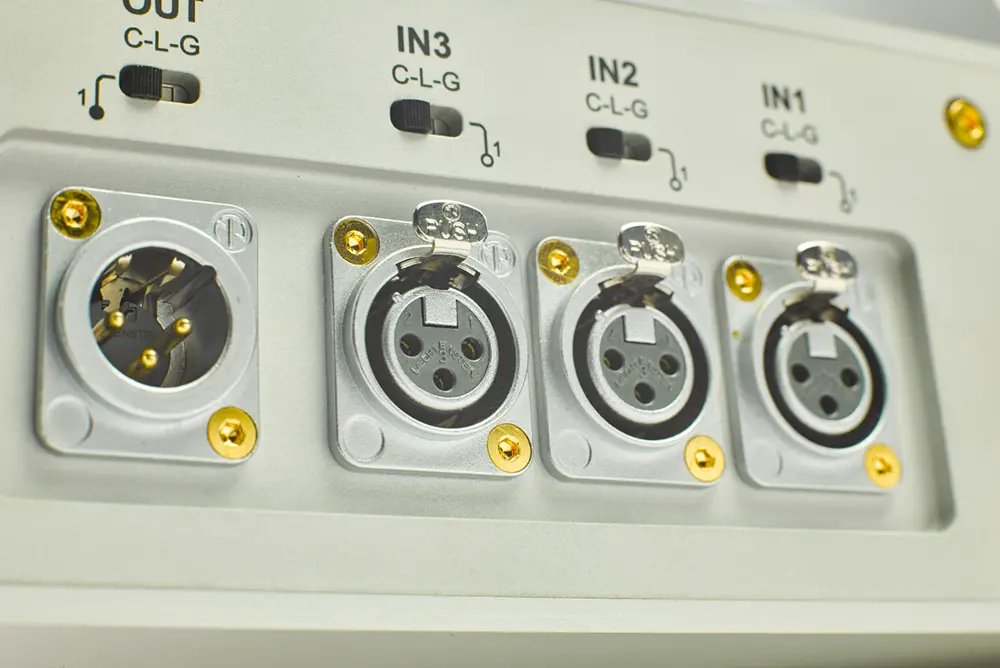

| INPUTS | 3 balanced |
|---|---|
| OUTPUT | 1 balanced (24dBu) |
| GAIN | 0..82* dB, 1 kHz (37 position) *higher gain on request |
| IMPEDANCE | 7.5, 1k2 ohm & 47 kohm (24 position) |
| CAPACITY | 33pF .. 680pF (12 position) |
| NOISE EIN | -144 dB BW 22Hz .. 22kHz (49.8 nV) |
| RIAA | passive balanced ±0.05 dB |
| THD | not measurable |
| FREQ. RESPONSE | 1.5 Hz .. 150 kHz |
| CROSSTALK | >120 dB |
| HEADROOM | >24 dB |
| SUBSONIC | passive balanced 15 Hz, 18dB/oct |
| FUNCTIONS | MUTE, phase, overload Ind., ground lift |
| ARCHITECTURE | fully balanced Class A, discrete, high voltage, dual mono |
| CASE | aluminum milled 20mm, champagne |
| POWER | 100/115/230V 65 Watt |
| W/D BRUTTO | flight case: 27kg / 780 × 560 × 240 mm |
| W/D NETTO | ML-7: 14 kg / 446 × 88 × 410 mm ext. PSU: 2.5 kg / 110 × 115 × 280 mm |
