Technology:

Single stage, Single Ended, TriodeFet technology

Gain stages:

Single stage amplifier, from input to output posts

Power output:

20W @8ohms

Tube compliment:

2 x 6j11p-e, compatible with: E280F / E282F / E810F / E180F, D3A

Volume control:

61 step Resistor ladder, relay switched volume control technology

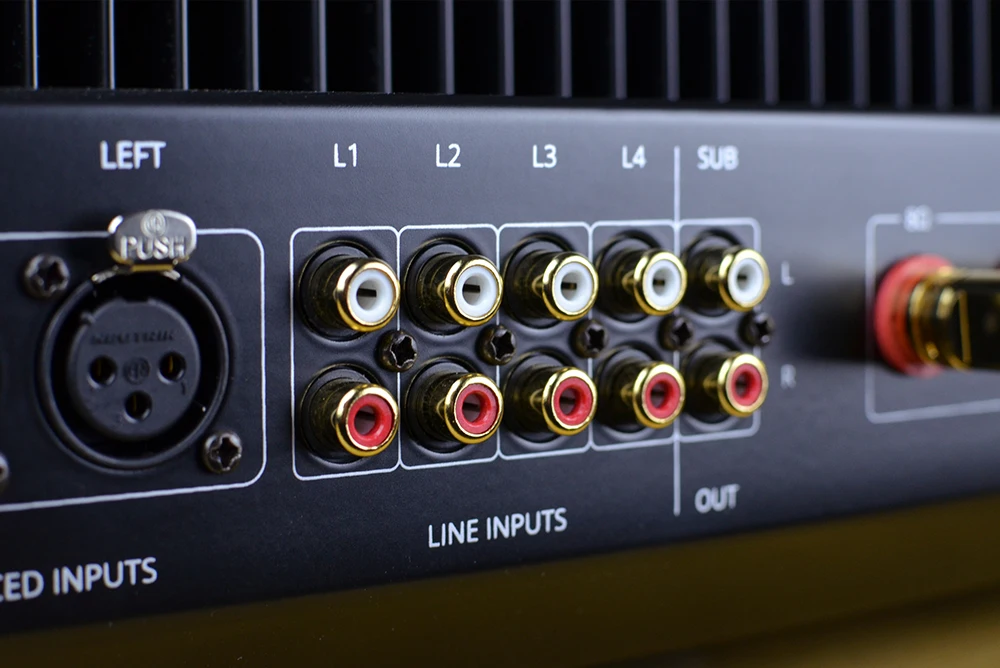

Inputs:

Less than 0.1% THD at 20V rms

Inputs:

5 x RCA

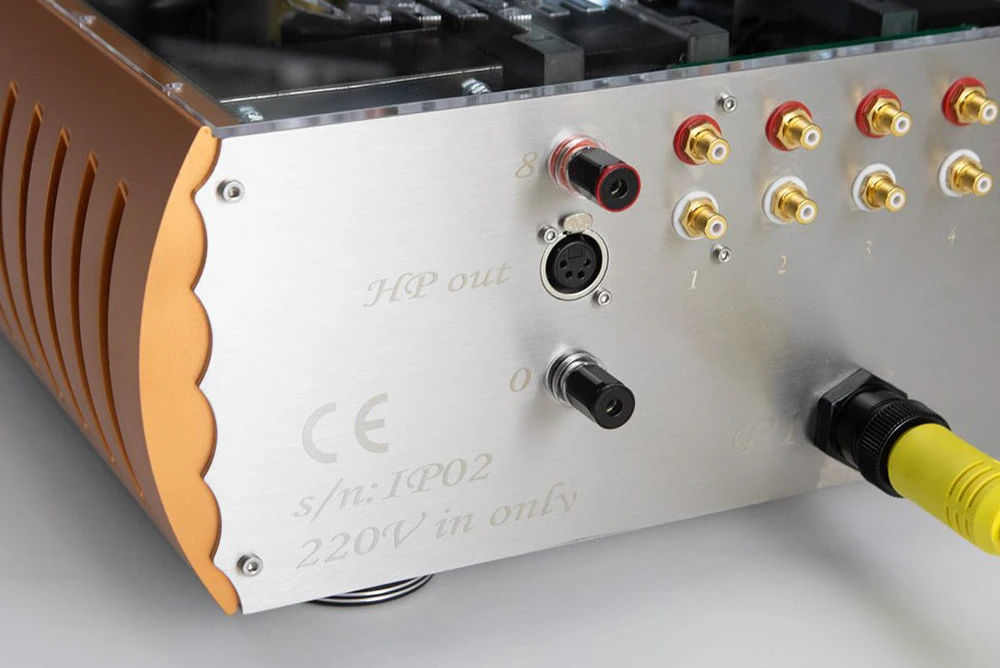

Headphone output:

4-pin xlr output, directly driven by output stage.

Full power available for HP output / no Impedance matching required

Power bandwidth:

full power at 5Hz -3db

Maximum gain:

18db (tube dependent)

Noise floor:

-90db ref 1V RMS

Dimensions:
