CA$120,400 /each
| POWER SUPPLY | Nominal line voltage: 115 V or 230 V Input voltage range: +/- 15 % |
| RATED POWER CONSUMPTION | IEC 60065, 1/8 Output Power at 8 Ω: 250 W |

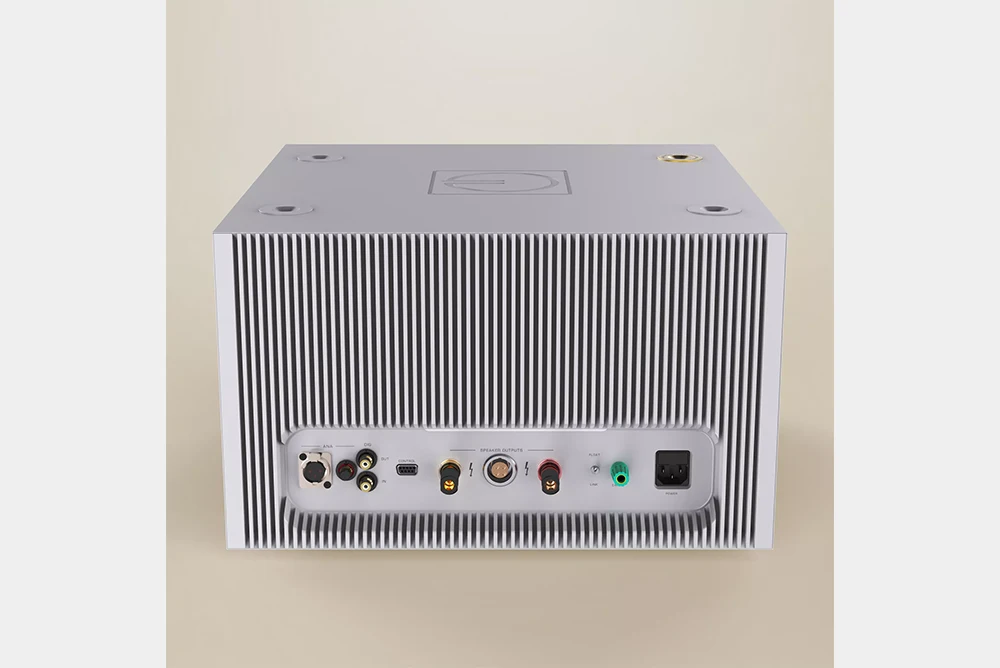

| REAR PANEL | 1 x Power cord: universal socket 3 lugs 1 x Main fuse (4 A slow-blow for 230 V) ; (8 A slow-blow for 115 V) 1 x Green-yellow AC earth binding post (with bridge connection) 1 x Ground lift switch 2 x output binding posts (red & black) 1 x output speaker 4B type connector 1 x Analogue RCA input (unbalanced connector) 1 x Analogue XLR input (balanced connector) 1 x Digital input and output RCA connectors 1 x RS232 command connector |
| INPUT | Max level before clipping, Analogue input: 1 Vrms Max level before clipping, Digital input: -6 dBFS |
| OUTPUT | Max level before clipping, 1 % THD, unloaded: 170 Vpp |
| OUTPUT POWER | IMD (SMPTE), unloaded: < 0.05 % THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output |
| DISTORTION | Maximum power (IEC60065): 420 Wrms on 8 Ω / 1 % THD |
| OUTPUT NOISE FLOOR | Analogue input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz |
| GAIN | 35 dB |
| DYNAMIC RANGE | 22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB |
| DAMPING FACTOR | 600 at 1 kHz / 8 Ω |
| SIZE & WEIGHT | 44 W x 28 H x 46 D (cm) – 17.3 W x 11 H x 18.1 D (inch) 51 kg |
| COLOR | Silver Gray |
