Description ▴

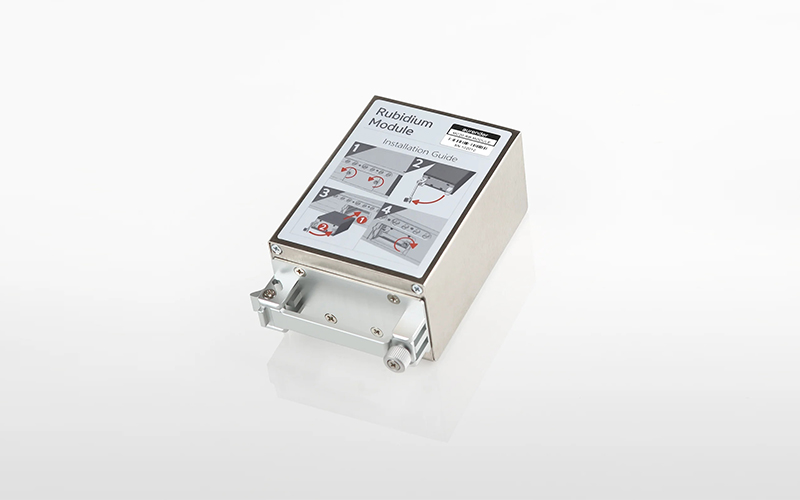

With MC10, Aurender is proud to introduce a master clock solution that retains the primary performance benefit of MC20, and brings exceptional value to the market. In fact, MC10 delivers exactly the same essential performance and benefits as its predecessor but at a much more accessible price point. Aurender has achieved this by removing the dual OCXO word clock modules and associated interface technology, which only work effectively with an extremely limited number of DACs (dCS). In retaining the rubidium-module-based 10MHz master clock generator, power supply structure, and vibration mitigation, MC10 retains 100% of the applicable performance benefits of MC20 in the vast majority of product-pairing scenarios.

MC10 features 4 x 10 MHz master clock outputs, including 2 x 75Ω and 2 x 50Ω. This configuration of outputs pairs well with select DACs, word clocks, and Aurender models with a clock input (N20, N30SA, W20/SE, and AP20). Connecting a clock signal output from MC10 to your Aurender alone can significantly improve the performance of the already ultra-low-jitter digital audio output. Experience the soundstage snap into focus, creating a clear and distinct image of a piano-shaped object, instead of hearing stray notes leaping out from discrete speaker drivers.

Product Specifications ▾

 10MHz Master Clock Output Rubidium Master Clock: 10MHz 2ea. (75Ω), 2ea. (50Ω), 0.7Vrms (±10%)

Phase Noise (Rubidium)

< -130dBc / Hz (10 Hz)

< -140dBc / Hz (100 Hz)

Freq. Short-term Stability (Rubidium)

<2×10⁻¹¹ (1 s)
<1×10⁻¹¹ (10 s)
<2×10⁻¹² (100 s)
Size (W x H x D)  430 x 108 x 370 mm

16.9 x 4.25 x 14.6 inch

Weight 12.9kg, 28.4lbs
Input Voltage  110V / 220V
Power Consumption Standby: 5.7W / Power On: Start Warm-up (95W Max), State Lock (30W Max)
